ML8204 electronic bell integrated circuit

Published:2011/6/8 21:55:00 Author:Christina | Keyword: electronic bell, integrated circuit | From:SeekIC

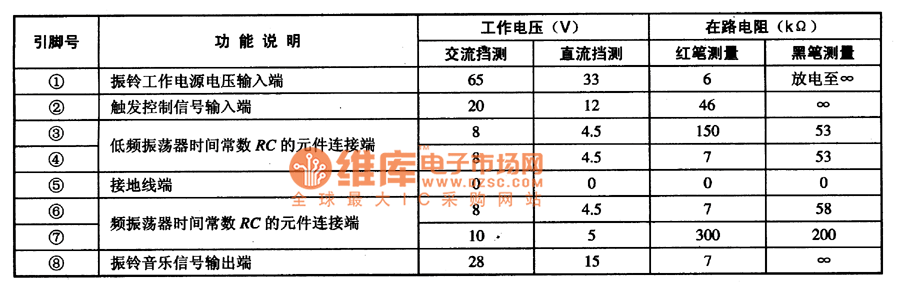

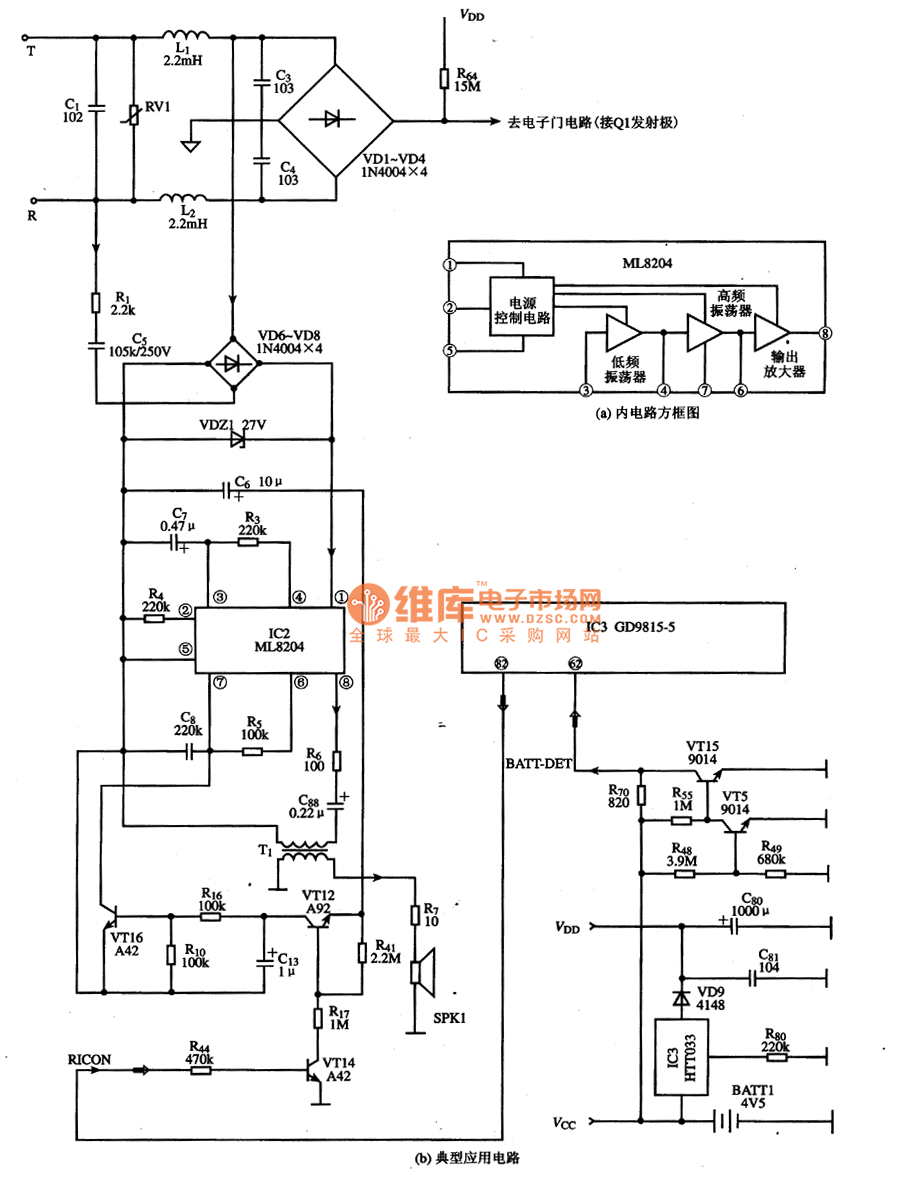

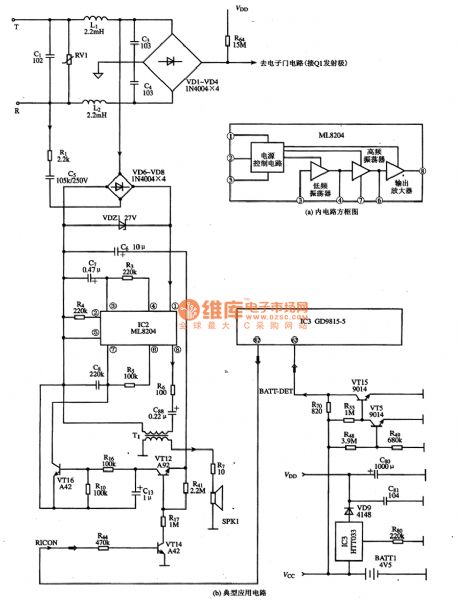

The ML8204 is designed as one kind of electronic bell integrated circuit, and it can be used in the communication equipments as the ring, such as the cordless telephone and the corded phone.etc. 1.Features The ML8204 has the ringing drive signal generation circuit and the ring signal drive circuit.etc, and it produces two alternate output audio electronic ringing. The internal circuit block diagram is as shown in figure (a). The pin functions and data is as shown in the table. The pin functions and data of the ML8204 2.Typical application circuit The typical application circuit of the ringing circuit which is composed of the ML8204 integrated circuit is as shown in the figure (b). The typical application circuit of the ringing circuit which is composed of the ML8204 integrated circuit
