Motorcycle energy-saving controller

Published:2011/7/20 19:25:00 Author:Lucas | Keyword: Motorcycle , energy-saving controller | From:SeekIC

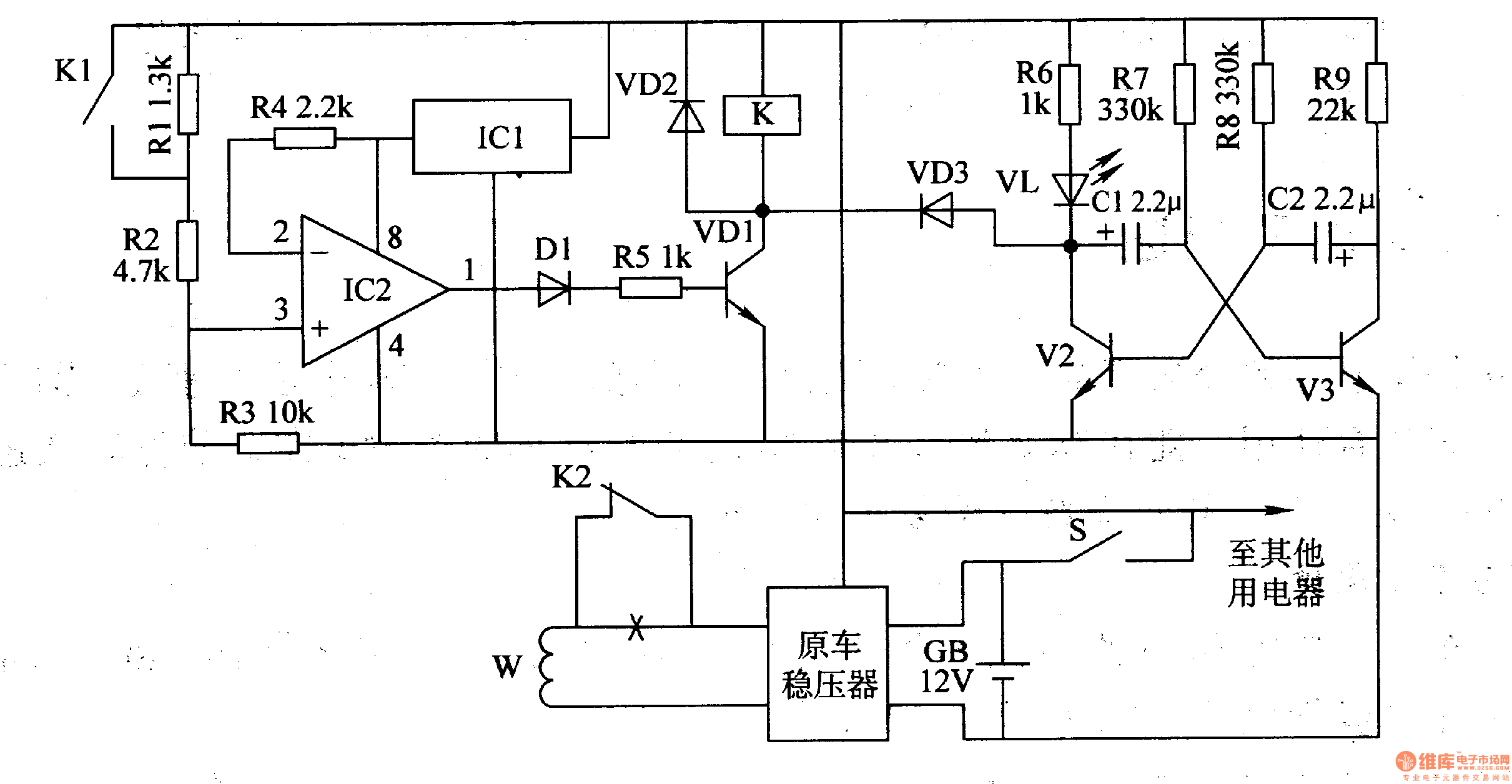

The motorcycle energy-saving controller circuit is composed of the voltage detection control circuit and multivibrator, and the circuit is shown in Figure 7-173. Voltage detection control circuit is composed of the resistors Rl-R5, three-terminal regulator IC lCl, op-amp integrated circuit IC2, diodes VDl, VD2, transistor Vl and relay K. Multivibrator circuit consists of resistors R6-R9, capacitors Cl, C2, light-emitting diode vL and transistors V2, v3. Rl-R9 select 1/4W metal film resistors.
