New punch program controller circuit

Published:2012/8/20 0:52:00 Author:Ecco | Keyword: New punch , program controller | From:SeekIC

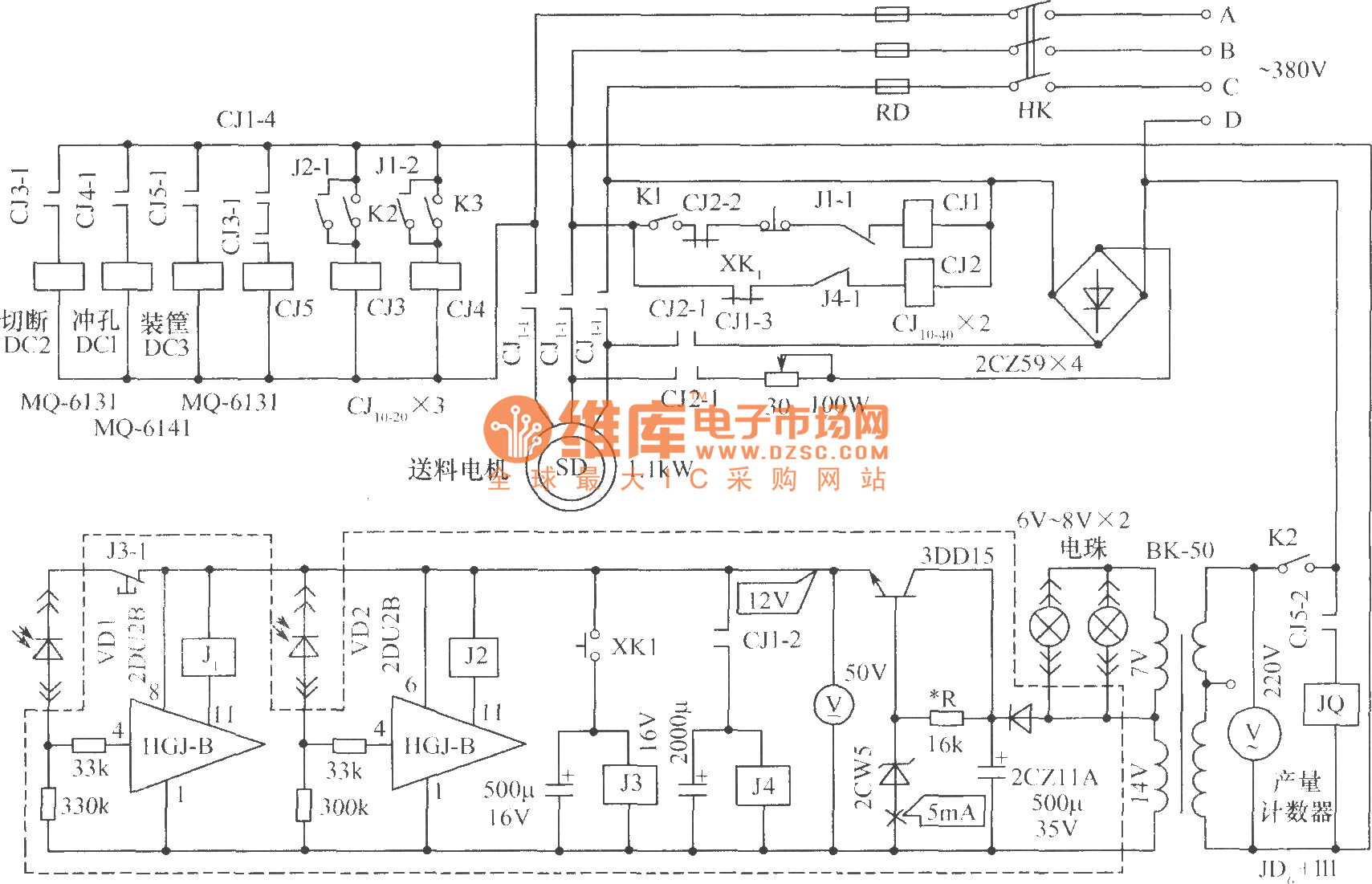

The device is develped in the process of transformation of the old-fashioned punch. It is suitable for punching and cutting the ribbon steel - based products, and it has the advantages of simple, reliable, anti-interference, automatically processed products with the optical signal. The device's circuit is shown below. The listening and reading structure with Optical signal is composed of two 6V ~ 8V bulbs (without condenser ) and two photodiodes and its attachments. Its schematic diagram is shown below. Optical signal is generated by a stick of 1.5mm thick black tape. Information location of each program is shown below.
