Over-temperature monitoring automatic control circuit diagram

Published:2011/8/4 21:54:00 Author:Rebekka | Keyword: Over-temperature monitoring , automatic control | From:SeekIC

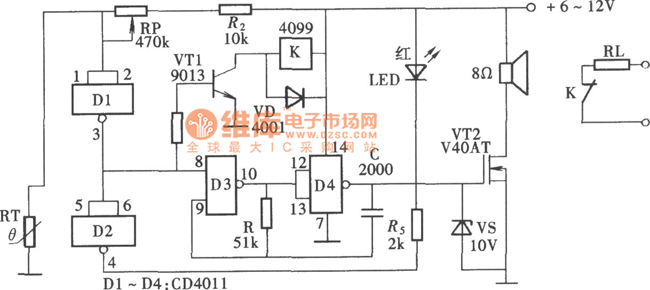

The circuit is composed of a NAND gate circuit, a thermistor composition measurement, control circuit and sirens generating circuit. It uses a relay as the implementation circuit. Its structure is simple and easy to make, economical and practical. The constitution of the circuit is shown as above.
