PCB Drill Speed Controller with 555

Published:2013/3/27 4:24:00 Author:Ecco | Keyword: PCB Drill Speed, Controller | From:SeekIC

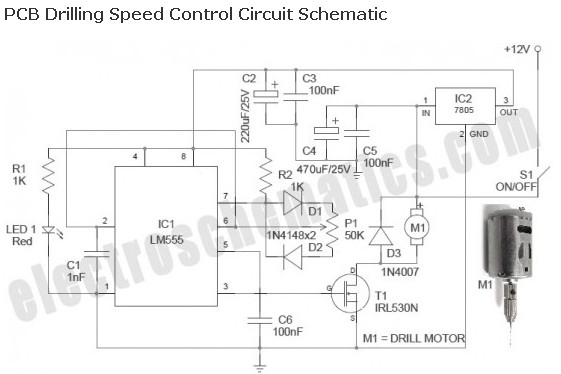

Described here is a simple, inexpensive and useful circuit for electronics hobbyists. The circuit is nothing but a PCB drill speed controller, which can be used to control the speed of any 12VDC small pcb drilling units. Such portable units are now widely available, and even a hobbyist can make it without too much difficulty.
