PLUG_IN_SPEED_CONTROL_FOR_TOOLS_OR_APPLIANCES

Published:2009/6/25 22:43:00 Author:May | From:SeekIC

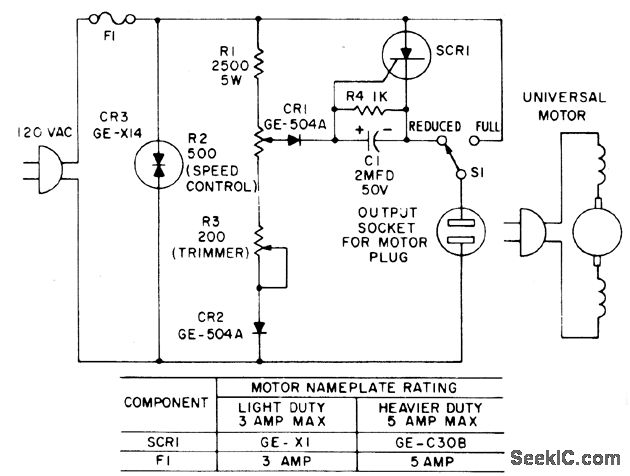

Most standard household appliances and portable hand tools can be adapted to variablespeed operation by use of this simple half-wave SCR phase control. It can be used as the speed control unit for the following typical loads providee they use series universal (brush type) motors. DrillsFansSewing Machines LathesSaber saws VibratorsPortable band saws Movie projectors Food mixers SandersFood blendersDuring the positive half cycle of the supply voltage, the arm on potentiometer R2 taps off a traction of the sine wave supply voltage and compares it with the counter emf of the motor through the gate of the SCR. When the pot voltage rises above the armature voltage, current flows through CR1 into the gate of the SCR, triggering it, and thus applying the remainder of that half cycle supply voltage to the motor. The speed at which the motor operates can be selected by R2. Stable operation is possible over approximately a 3-to-1 speed range.
