POWER_SUPPLY_OVERLOAD_PROTECIION

Published:2009/7/21 10:20:00 Author:Jessie | From:SeekIC

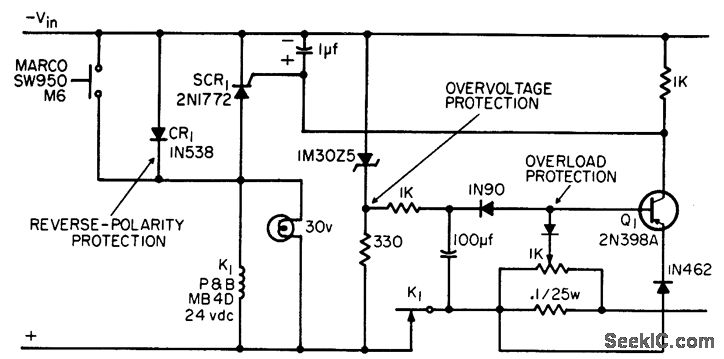

Circuit uses simple relay instead of customary transistor to break load current when over-load or overvoltage occurs.-J. J. Rado, Versatile SCR Protection for Power Supplies, EEE, 13:8, p 56-62.
