PULSED_INFRARED_TRANSMITTER_FOR_ON_OFF_CONTROL

Published:2009/6/16 22:21:00 Author:May | From:SeekIC

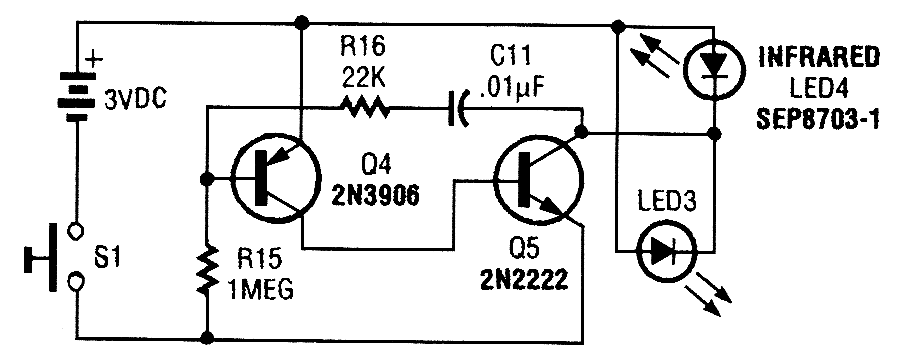

This transmitter consists of an oscillator and LEDs. It generates a pulsed tone of around 850 Hz.
