PULSE_CHAIN_PHASEMETER

Published:2009/7/20 5:18:00 Author:Jessie | From:SeekIC

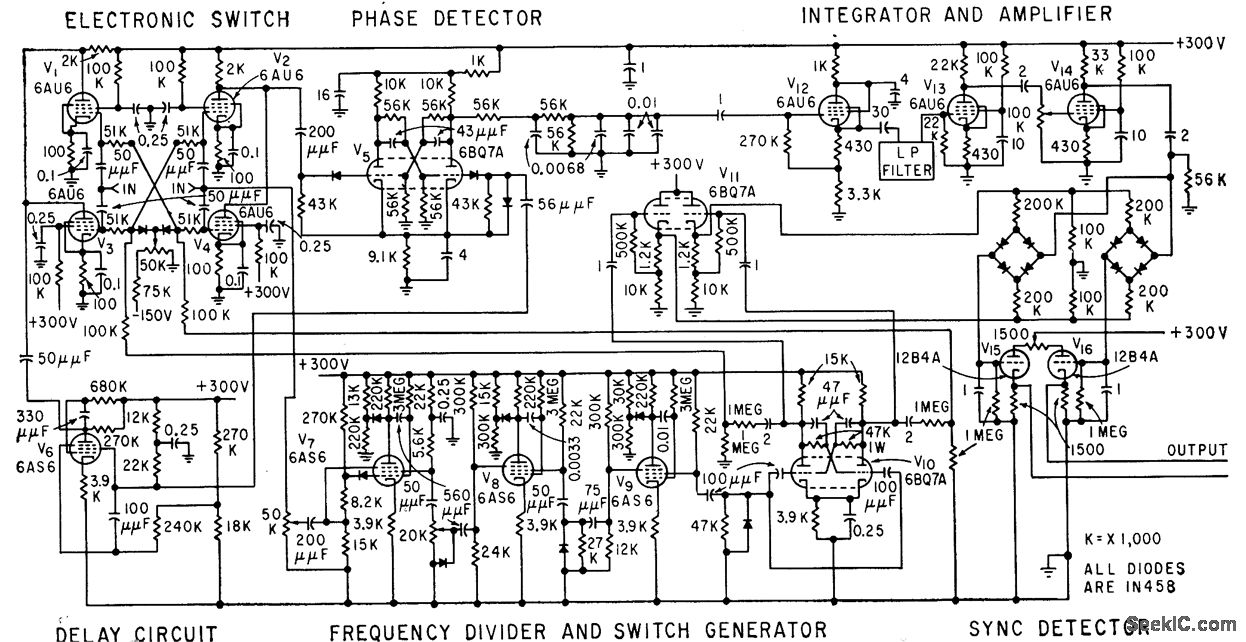

Measures phase difference as small as 0.005 deg between pulses of two nearly coincident pulse chains using electronic switch, mvbr phase detector, and diode synchronous detector. Output shows both sign and magnitude of phase angle between two corresponding pulses in pulse chains.-F. Vrataric, Jr., Electronic Switching in Phase Measurement, Electronics, 32:23, p 60-61.
