HALOGEN_LAMP_PROTECTOR

Published:2009/6/17 2:17:00 Author:May | From:SeekIC

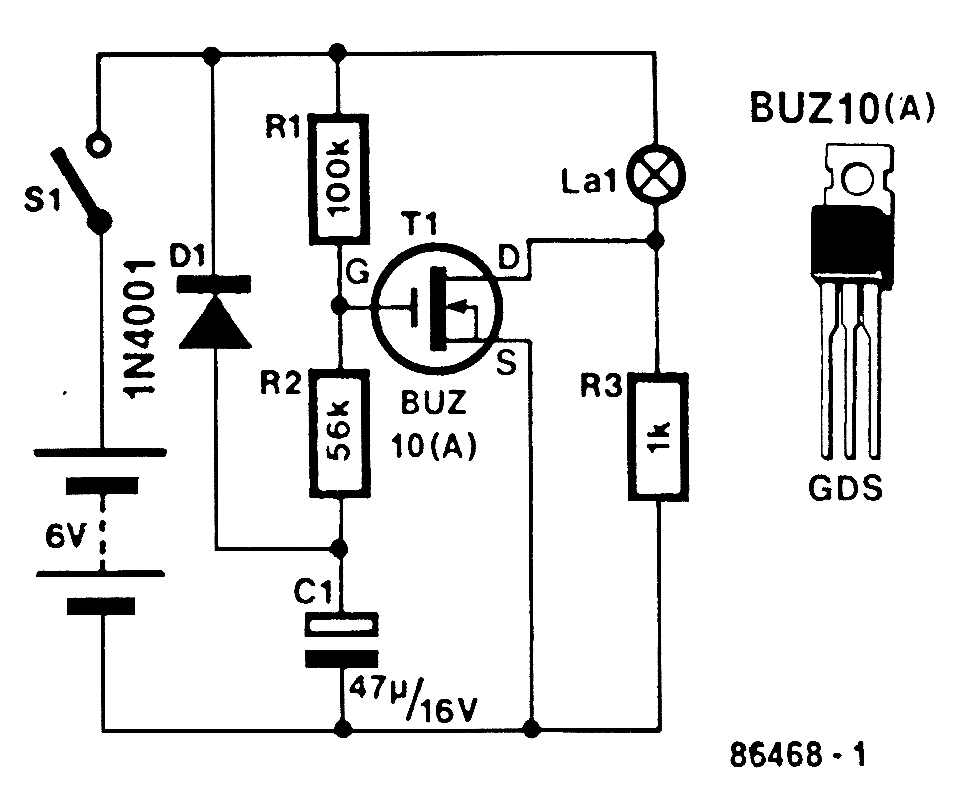

This circuit produces a soft turn-on for halogen lamp filaments upon powerlng up，MOSFETRI used is a BUZ10, which has 0.2Ω RDS on.R1,R2，and C1 set the turn-on rate and D1 discharges C1 at turn-off.
