MODEM_FAX_PROTECTOR_FOR_TWO_COMPUTERS

Published:2009/6/17 21:01:00 Author:May | From:SeekIC

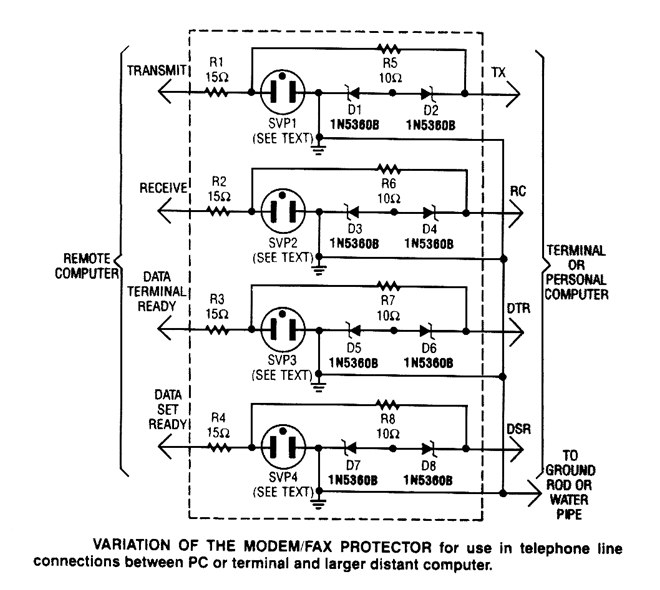

This modem/fax protector can be used in telephone-line connections betweenaPC or a terminal and a distant computer. In this circuit, the SVPs (surge voltage protectors) are at 230V.A good ground is a must for effective operation.
