Motor overload protection circuit

Published:2011/11/8 20:32:00 Author:Ecco | Keyword: Motor overload protection | From:SeekIC

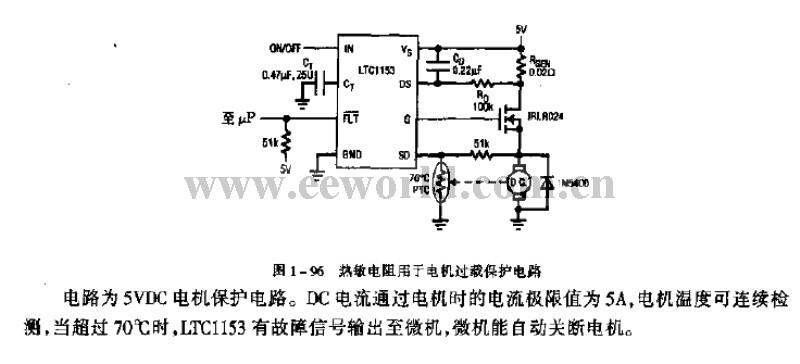

The circuit is the 5VDC motor protection circuit. The current extreme of DC current passing the motor is 5A, and the motor temperature is monitoring continuously, when it is more than 70 ℃, LTC1153 has fault signal sending to the computer, then the computer automatically shut off the machine.
