Remote control load protection circuit diaram

Published:2011/9/26 21:55:00 Author:Rebekka | Keyword: Remote control load protection | From:SeekIC

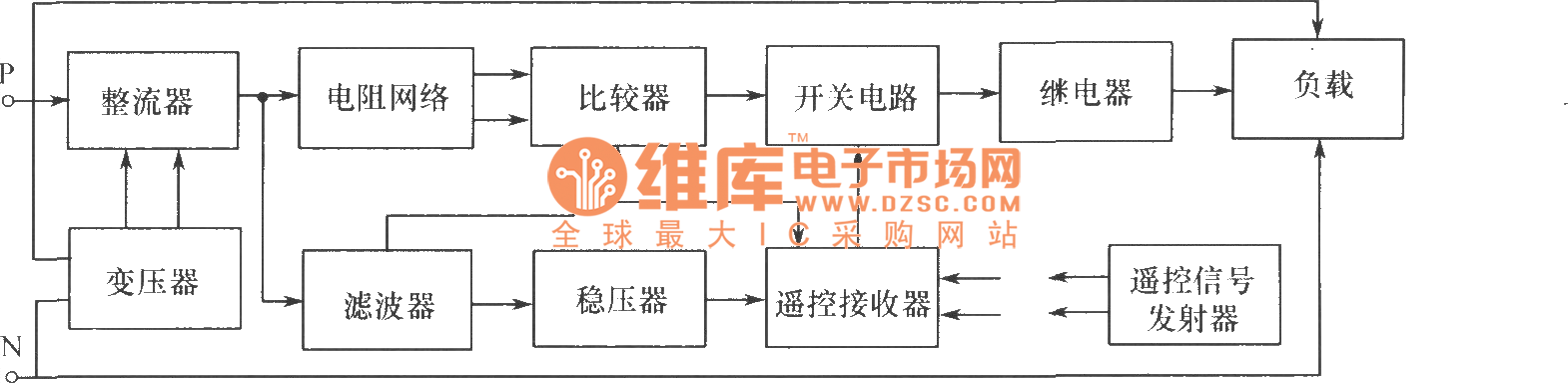

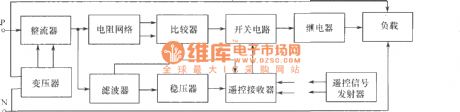

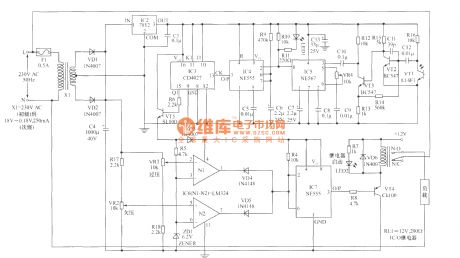

Remote control block diagram of the load protection. Remote control transmitter. Remote control receiver and load protection circuits. Load protection's main functions are: (1) When the power supply voltage is too low or too high, the load will be off automatically; (2) When the power supply voltage is restored, the load power will be connected automatically; (3)Ot provides powerfor normal indication, When the voltage is too low or too high, the light will turn off; (4) Using remote control to remote control power.
