Push Button Motor Control Circuits

Published:2013/6/18 3:56:00 Author:muriel | Keyword: Push Button, Motor, Control Circuits | From:SeekIC

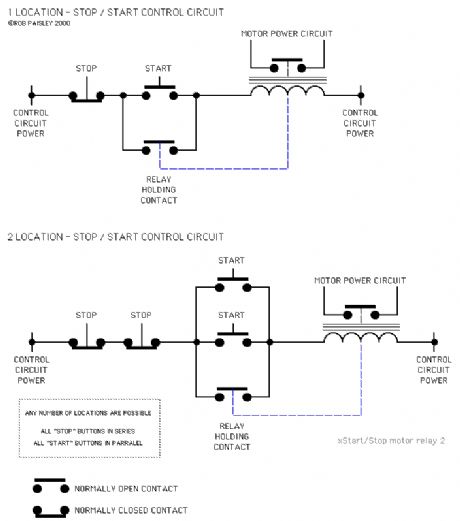

The circuits on this page are for motor controls using Push buttons and would typically be found in commercial and industrial installations. The circuits do not show the wiring of the motors themselves as this depends on the particular motor type. The type of motor also governs the number of contacts needed for the motor side of these circuits. The Relay Holding Contacts and the Interlock Contacts shown in these circuit would normally be built into the motor control relays.
