REDUCED_POWER_OVERLOAD_PROTECTION_

Published:2009/7/21 11:02:00 Author:Jessie | From:SeekIC

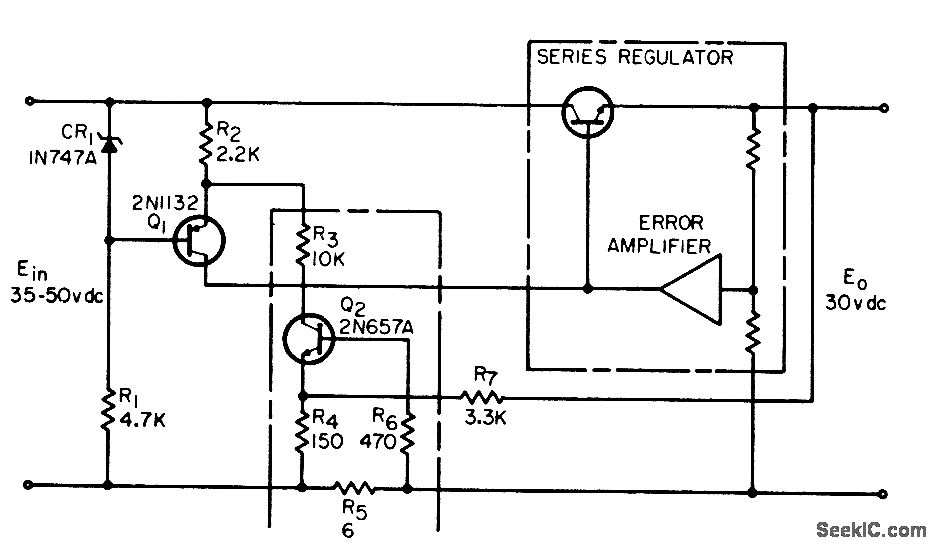

Circuit reduces power dissipotion in series regulator transistors under overload or short-circuit conditions by making output current decrease as load resistance decreases. Values shown are for 30 V d-c supply delivering 0.25 amp, with current limiting starting at 0.31 amp.-R. A. Lewis, Reduced-Power Overload Protection, EEE, 12:11, p 67.
