REPETITION_RATE_CONTROL

Published:2009/7/14 3:31:00 Author:May | From:SeekIC

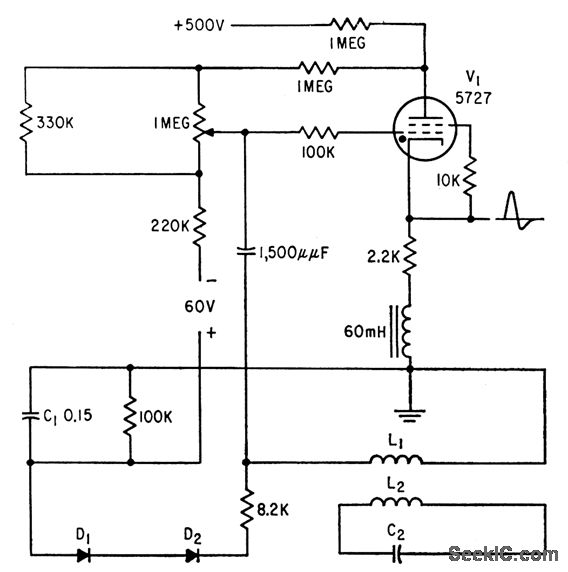

Compensates for fluctuations in repetition rate of hydrogen thyratron in induction heater. Ripple voltage induced in L1 acts on control grid of V1 to displace peaks at which ignition occurs in correct direction to maintain constant repetition rate in damped circuit.-H. L. Van Der Horst, How Radar Techniques Improve Induction Heating, Electronics, 32:7, p 51-55.
