RISE_AND_FALL_CONTROL

Published:2009/7/16 2:39:00 Author:Jessie | From:SeekIC

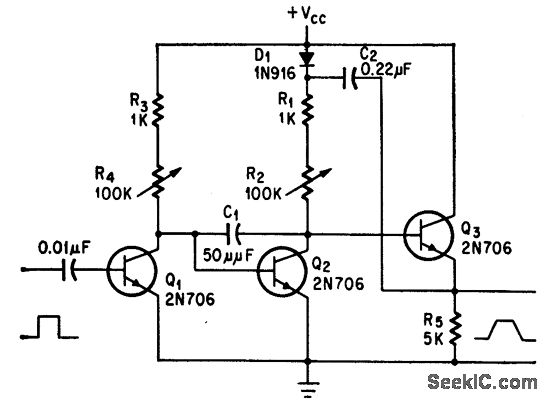

C1 controls range of rise and fall times, from 10 nsec for 10pf, to 10 millisec for 0.1 mfd. Used for testing pulse networks.-D. G. Larsen, Pulse Generator Controls Rise, Fall Time Independently, Electronics, 38:19, p 98-99.
