Repeating Timer No.2

Published:2012/12/5 0:05:00 Author:muriel | Keyword: Repeating Timer | From:SeekIC

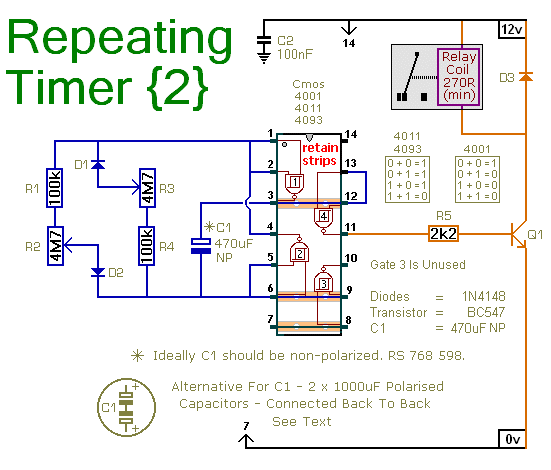

This circuit is based on a simple asymmetric oscillator. The length of time the relay remains energized - and the length of time it remains de-energized - are set independently. With the component values shown in the diagram - both periods are adjustable from about 1 to 30 minutes.
