Ruixing QPL-33 hair repair device circuit diagram

Published:2011/8/19 1:13:00 Author:Jessie | Keyword: Ruixing, hair repair device | From:SeekIC

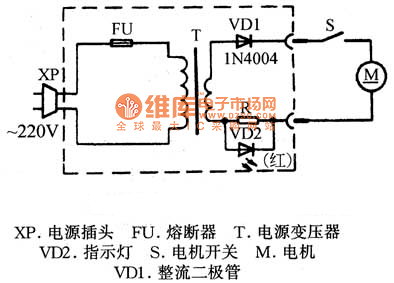

XP-plug; FU-fuse; T-power transformes; VD2-indication light; S-motor switch; M-motor; VD1 rectifier diode
