SCS_CONTACT_ISOLATOR_1

Published:2009/7/24 4:24:00 Author:Jessie | From:SeekIC

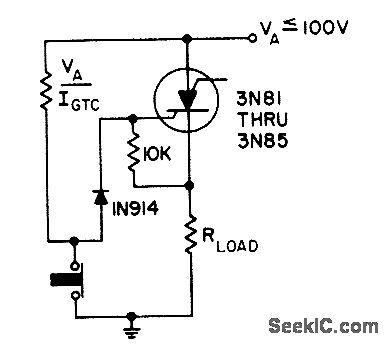

Eliminates contact bounce when both switch and load are grounded and opening of switch triggers scs. - Transistor Manual, Seventh Edition, General Electric Co., 1964, p 433.
