SERIES_REGULATOR_WITH_OVERLOAD_PROTECTION

Published:2009/7/21 10:13:00 Author:Jessie | From:SeekIC

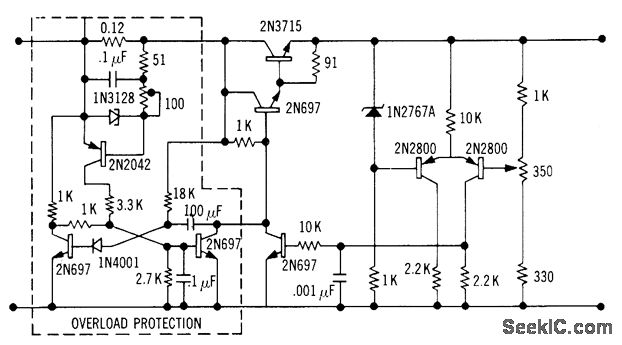

Tunnel diode and transistor serve as overload sensing circuit used to trigger monostable mvbr, to protect series-pass transistors against overload. Circuit resets continuously after overload until trouble is cleared. Protection is adequate for resistive loads only.-J. Takesuye and H. Weber, Silicon Power Transistors Provide New Solutions to Voltage Control Problems, Motorola Application Note AN-163, Aug. 1965.
