SHUTDOWN_CIRCUIT

Published:2009/6/18 21:37:00 Author:May | From:SeekIC

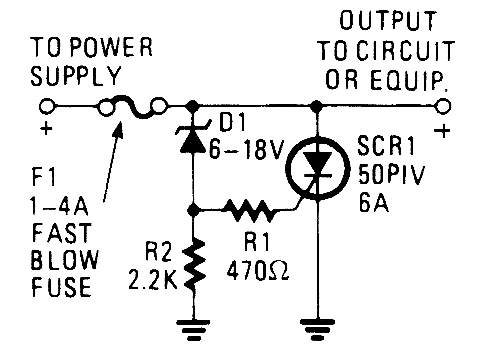

Many modern devices have shutdown circuits that are designed to remove power from the de-vice under power when the voltage rises above a predetermined threshold. This one blows a fuse to protect the device under power.
