SIMPLE_NOISE_LIMITER_FOR_RECEIVERS

Published:2009/6/24 2:48:00 Author:Jessie | From:SeekIC

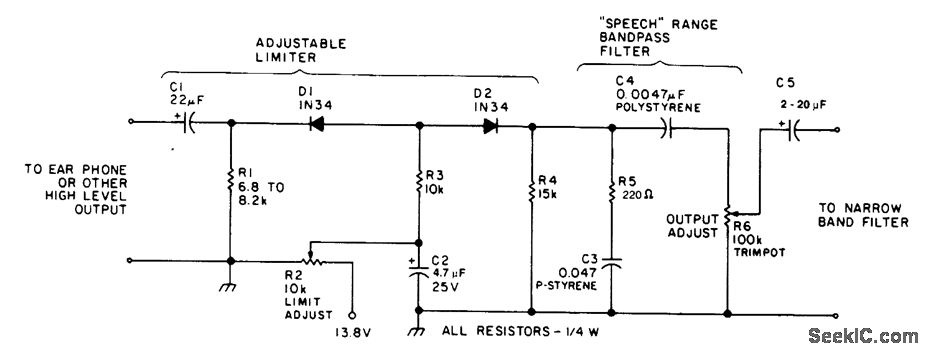

This circuit uses a diode series clipper to limit noise peaks on a received signal. It is best used, where several volts p-p of audio signal are available.
