SIMPLE_TRIANGLE_SQUARE_WAVE_OSCILLATOR

Published:2009/6/25 21:42:00 Author:Jessie | From:SeekIC

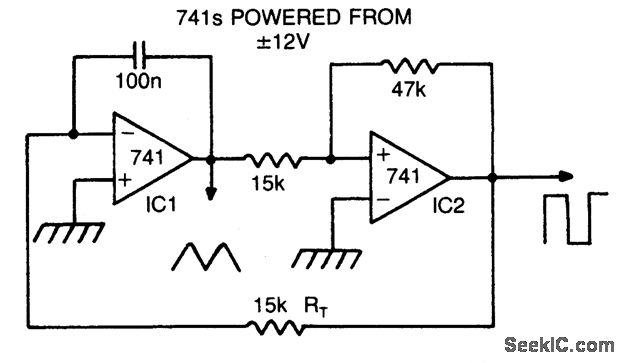

Circuit Notes By making Rr variable it IS possible to alter the operating frequency over a 100 to 1range，Versatile triangle/square wave oscillator has a possible frequency range of 0.1 Hz to 100 kHz.
