SINGLE_SETPOINT_TEMPERATRE_CONTROLLER

Published:2009/6/25 23:13:00 Author:May | From:SeekIC

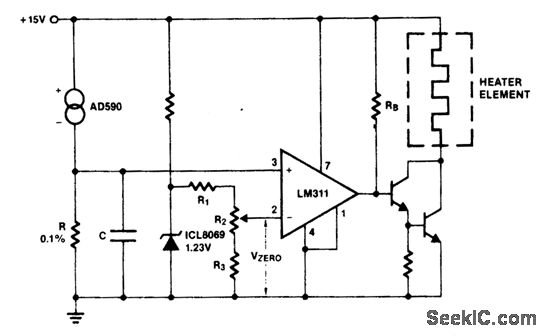

Ths AD590 produces a temperature-dependent voltage across R (C is for filtering noise). Setting R2 produces a scale-zero voltage. For the Celsius scale, make R=1K and Vzero=0.273 volts. For Fahrenheit, R=1.8K and Vzero=0.460 volts.
