SINGLE_SUPPLY_PRODUCT_DETECTOR

Published:2009/7/21 23:11:00 Author:Jessie | From:SeekIC

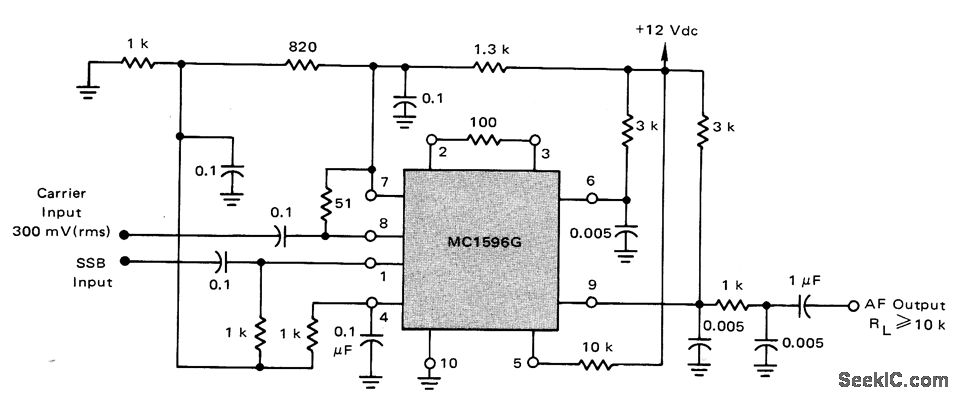

Motorola MC1596G balanced modulator requires no carrier null adjustment because all frequencies except desired demodulated audio are in RF spectrum and easily filtered out. Circuit performs well with carrier input levels of 100-500mVRMS. Provides good product detector performance from very low frequencies up to 100MHz.-R Hejhall, MC1596 Balanced Modulator,Motorola.Phoenix.AZ,1975.AN-531,p7.
