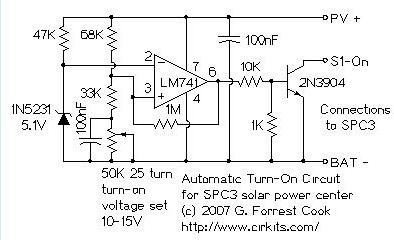

SPC3 9 Amp in / 10 Amp out Solar Power Center

Published:2013/3/6 2:49:00 Author:Ecco | Keyword: 9 Amp , 10 Amp, out, Solar Power Center | From:SeekIC

The SPC3 is a solar power center, it can handle all of the power functions for a solar charged 12 Volt DC system. The SPC3 contains a 9 amp photovoltaic charge controller, a 10 amp low voltage load disconnect circuit and a pair of built-in white LEDs for area illumination. The low voltage disconnect circuit has a load on-off switch, and a battery low voltage indicator. By using the SPC3 as the center of a solar powered device, long battery life is assured. The SPC3 can be used for a self-contained solar lighting system, it can be used for making solar powered audio and radio devices and much more.
