Simple light changing stay wire switch circuit

Published:2011/6/27 3:34:00 Author:TaoXi | Keyword: Simple, light changing, stay wire, switch circuit | From:SeekIC

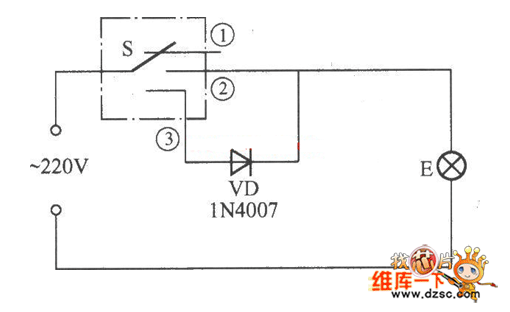

The simple light changing stay wire switch circuit is as shown in the figure, if you want to use it, you just need to pull the switch, the light will turn on; if you pull again, the light will darken; if you pull it the third time, the light will turn off, it is very convenient.
