Simulated Pendulum Circuit Composed of CD4017

Published:2011/6/2 9:58:00 Author:Joyce | Keyword: Simulated, Pendulum , CD4017 | From:SeekIC

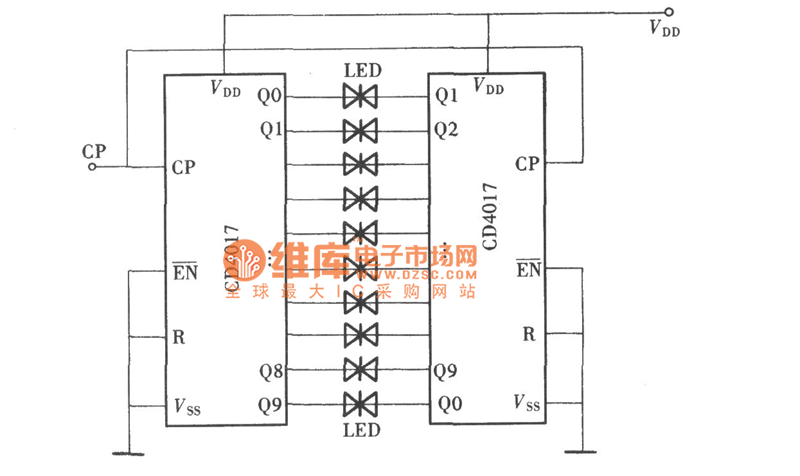

Making use of the characteristics of the ten output ends of CD4017 that they will move as being input with clock pulse, it is connected with a luminous diode in each of its output ends. The movement of output position will make the light emitting diode function, thus forming a simulated pendulum circuit. If it is installed in digital electronic clocks, it can not only make the clock work, but it can serve as a kind of adornment. The composition of the circuit is shown in the graph.
