Succession double timing control circuit

Published:2011/4/14 4:45:00 Author:Nicole | Keyword: succession, double timing | From:SeekIC

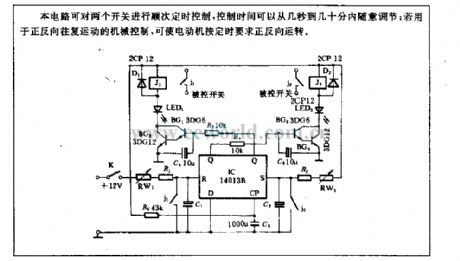

This circuit can control the two switchesin succession timing, andthe control time can be adjusted from a few seconds to several minutes; If it is used to mechanical control of forward and reverse reciprocating movement, it can make motor forward and reverse operation according to timing requirements.
