Summing Integrator Circuit

Published:2011/7/21 1:08:00 Author:Sue | Keyword: Summing, Integrator | From:SeekIC

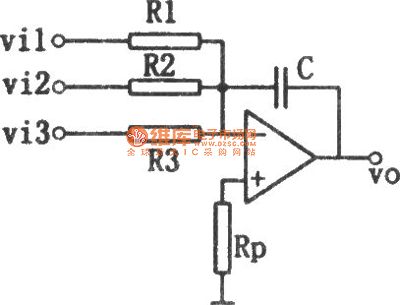

The picture shows the summing integrator circuit. It is named as summing integratorfor thereason thatthe circuit has many input return circuits. Figure1 Summing Integrator Circuit
