CC4052 multi-channel electronic switch integrated circuit diagram

Published:2011/5/9 2:24:00 Author: | Keyword: multi-channel electronic switch | From:SeekIC

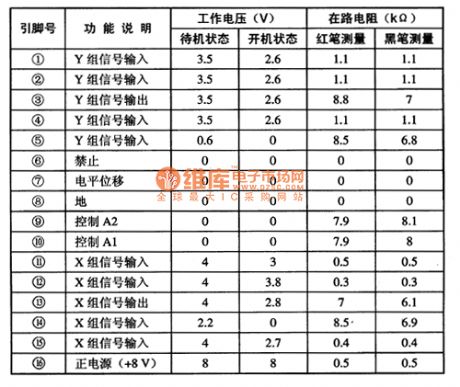

CC4052 is a multi-channel electronic switch integrated circuits produced by Toshiba.It's widely used in audio, video, communications, car audio equipment and the signal switching switch in the other electronic devices. CC4052 integrated circuits use 16-pin dual in-line package.It is used on changhong CN一15 movement of large screen color TV.The pin functions and data listed in Table 1. Table 1 CAT2404P integrated circuits' pin functions and data
