DIGITAL_AUDIO_SELECTOR

Published:2009/6/15 23:05:00 Author:May | From:SeekIC

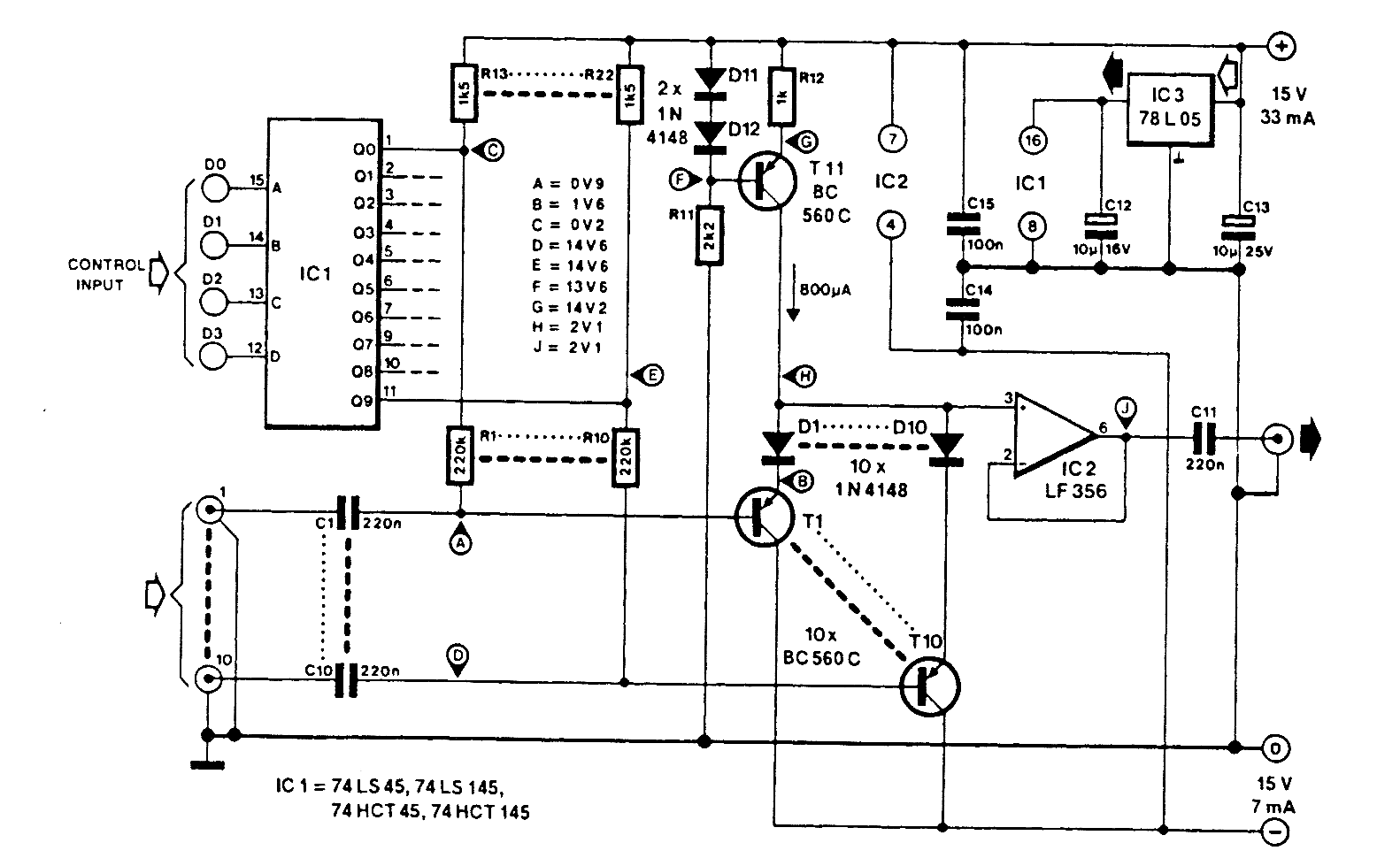

This circuit uses switched emitter followers, rather than the usual analog switch CMOS chips. This yields better reduction of crosstalk between channels. This circuit can handle up to 4 Vrms with less than -80-dB crosstalk.
