LOAD_SENSING_SOLID_STATE_SWITCH

Published:2009/6/17 3:17:00 Author:May | From:SeekIC

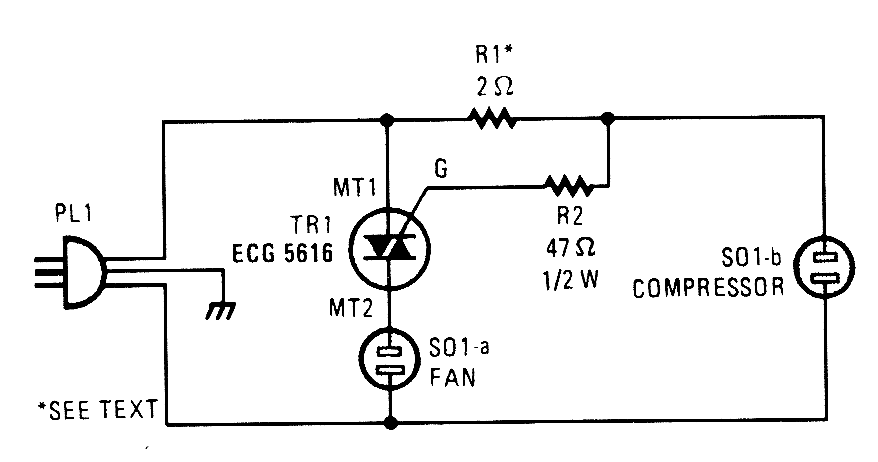

When this triac circuit senses current flow through SOl-a, it activates the device plugged into SOl-b. The values of the resistors must be chosen for the specific devices to be plugged in.
