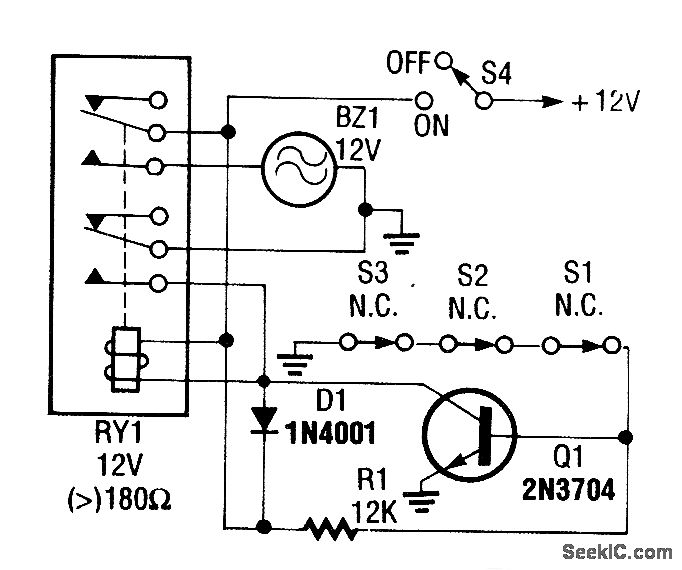

SIMPLE_BURGLAR_ALARM_WITH_NC_SWITCHES

Published:2009/7/9 21:46:00 Author:May | From:SeekIC

This relay draws 1 mA of idling current. Q1 detects open switch and energizes RY1.
