TOUCH_ON_ONLY_SWITCH

Published:2009/6/18 4:11:00 Author:May | From:SeekIC

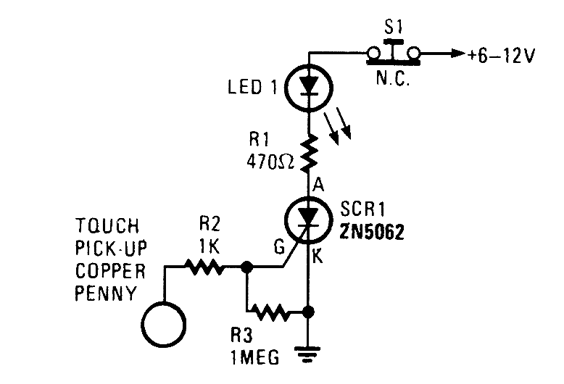

This touch on-only switch can be triggered into conduction by electrical means, and can only be reset by way of a mechanical switch. When the touch terminal is contacted by a finger, the SCR turns on and illuminates LED1.
