WIDEBAND_VIDEO_SWITCH_FOR_RGB_SIGNALS

Published:2009/6/19 2:03:00 Author:May | From:SeekIC

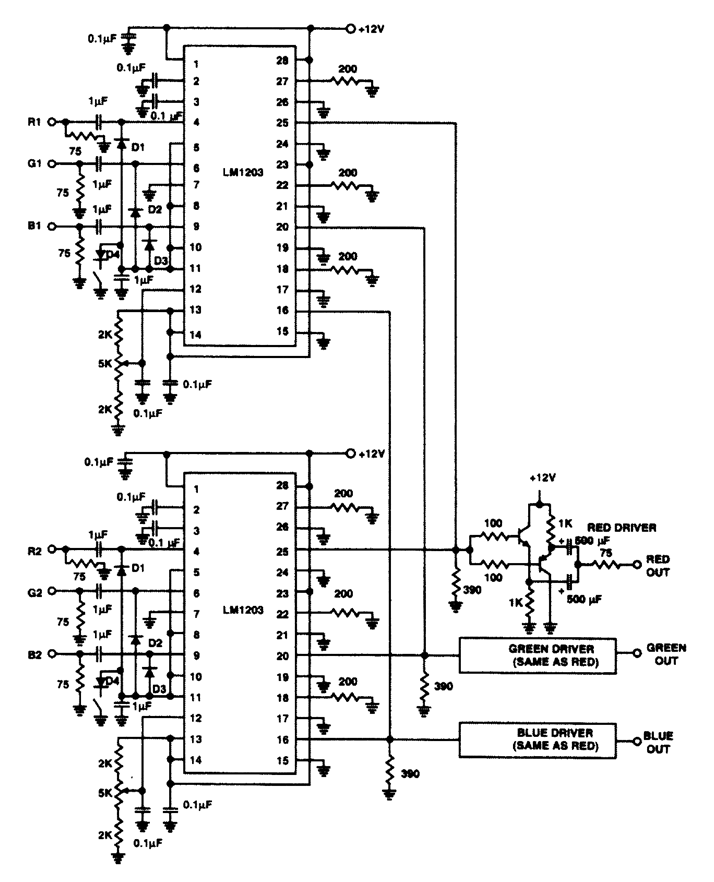

The switch shown selects 1to 2 inputs and uses a National LM1203. The slew rate is 4-V p-p into390 Ω in 5 to 7 ns.
