THEREMIN_VOLUME_CONTROL_CIRCUIT

Published:2009/7/14 4:58:00 Author:May | From:SeekIC

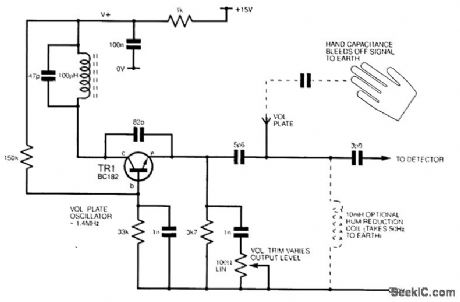

The circuit shows a capacitive potential divider with volume trim on the fixed oscillator. The hand capacitance loads down the RF to a detector stage, reducing the detector output. This output is used to control the gain of an audio amplifier.
