THERMISTOR_IS_SENSOR_FOR_OVEN_CONTROL

Published:2009/7/21 20:31:00 Author:Jessie | From:SeekIC

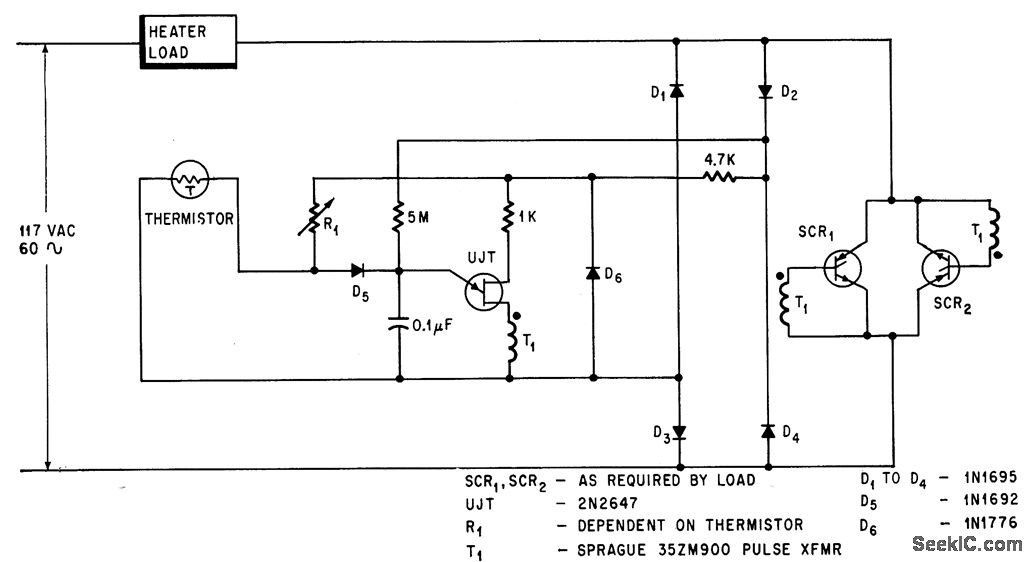

When oven temperature drops, thermistor resistance increases, making unijunction transistor trigger earlier in line voltage cycle so scr's deliver more power to oven. -J. C. Hey, The Widening World of the SCR, Electronics, 37:25, p 78-85.
