THYRATRON_AFC_FOR_AIRBORNE_RADAR

Published:2009/7/15 3:38:00 Author:Jessie | From:SeekIC

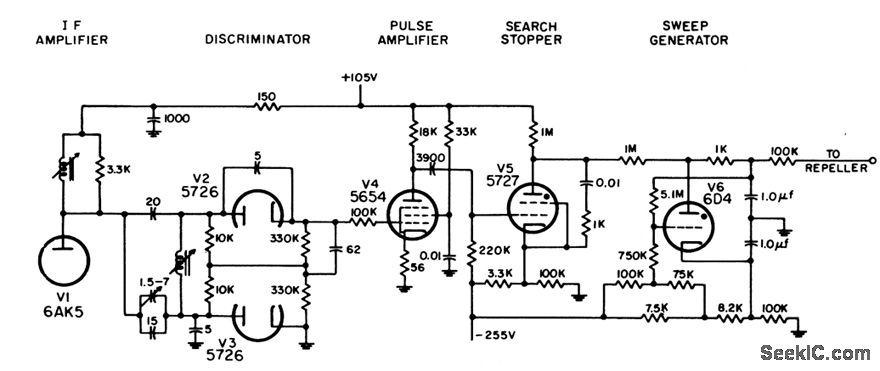

Uses Weiss discriminator, which for large bandwidths is easier to adjust than Foster-Seeley, and requires no special i-f transformer. Employs two thyratrons to generate required control voltage for repeller of klystron. -NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. I, Electron Tube Circuits,1963, p N 13-4.
