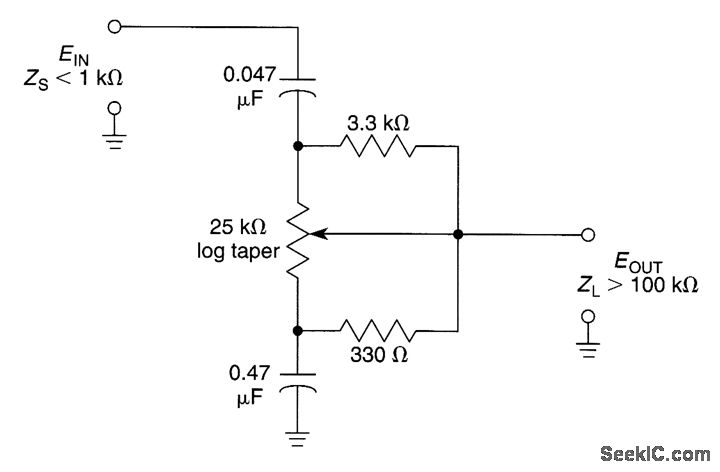

TREBLE_CONTROL_CIRCUIT

Published:2009/6/24 4:40:00 Author:Jessie | From:SeekIC

This tone control has an insertion loss of 20 dB at flat setting and is effective above 1 kHz，It little effect below about 1 kHz.
