TTL_INTERFACE_FOR_VMOS

Published:2009/7/13 22:32:00 Author:May | From:SeekIC

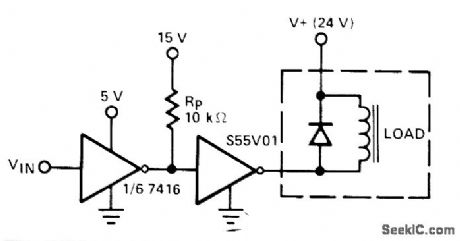

By using opencollector 7416 TTL interface with its output pulled up to 15V,S55V01 VMOS will switch up to 2 A easily. Inductive load such as relay requires diode across relay coil－L. Shaeffer, VMOS Peripheral Drivers Solve High Power Load Interface Problems, Computer Design，Dec.1977,p 90,94,and 96－98.
