The 300MSPS high-speed 10-bit D/A converter AD9751

Published:2011/8/23 22:39:00 Author:qqtang | Keyword: 300MSPS, D/A converter | From:SeekIC

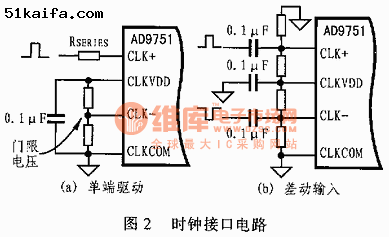

AD9751 is produced with advanced low-cost 0.35mm CMOS skill. It can work under the voltage of 2.7V~3.6V and its power consumption is lower than 300mW. The features of AD9751 are as follows:It is one of high-speed TxDAC+s, and it is compatible with pins of other chips, it can provide with resolution ratios of 10, 12 and 14-bit.It has an ultra-high-speed converter ratio of 300MSPS.It has a dual 10-bit lock storage and multi-line multiplex input terminal.It contains the clock multipler, which can be input with differentiation and single terminal clock.
