The MAX639 multi-functional switch integrated stabilizer

Published:2011/8/23 22:36:00 Author:qqtang | Keyword: multi-functional switch, integrated stabilizer | From:SeekIC

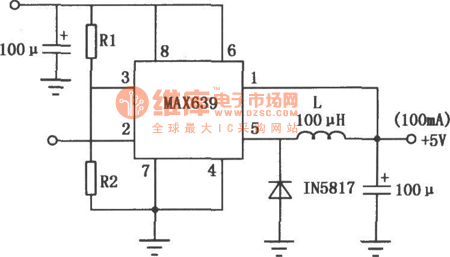

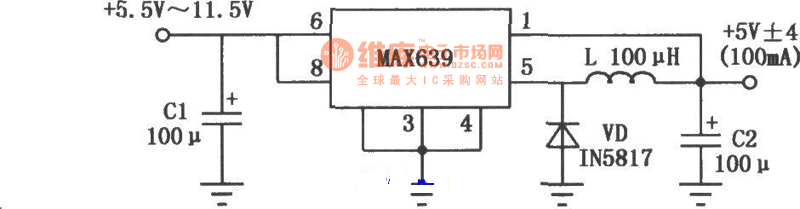

The solid/adjustable output multi-functional switch stabilizing integrated circuit is a high-efficient and multi-functional switch stabilizer circuit, whose output voltage is +5V, input voltage is 6.5~11.5V, output current is 100mA. Its efficiency is high, and it is fixed with the e-switch control terminal and battery low voltage test terminal which are controlled by the logic LEV, it characterizes low consumption, low voltage difference and strong functions,etc. The circuit is used in portable devices and instruments, etc, whose basic usage is shown in the figure.
