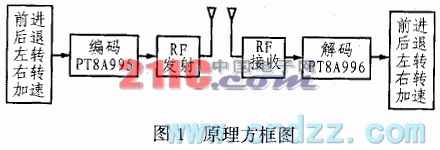

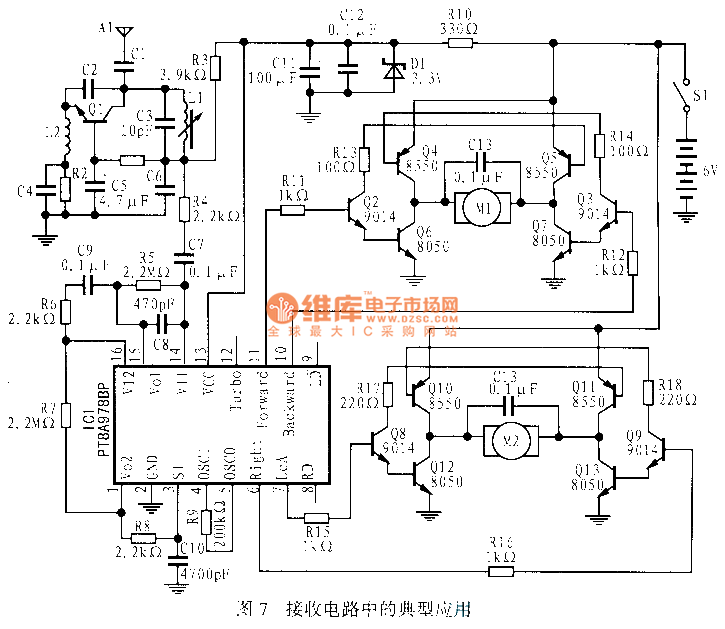

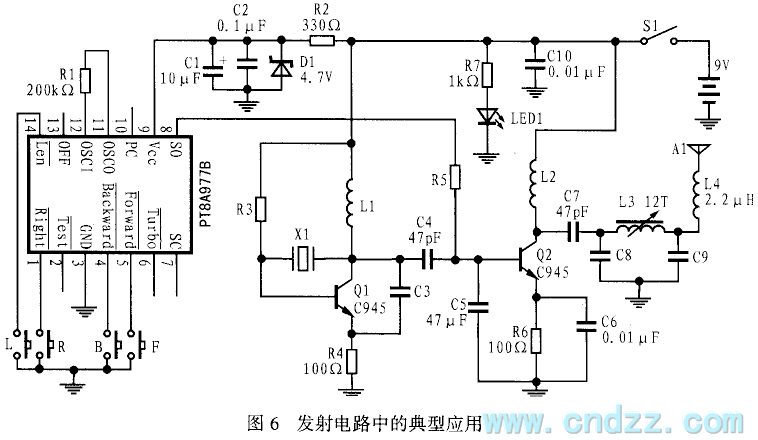

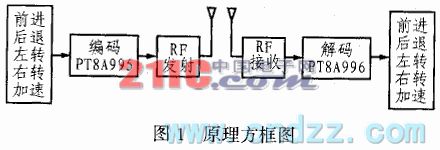

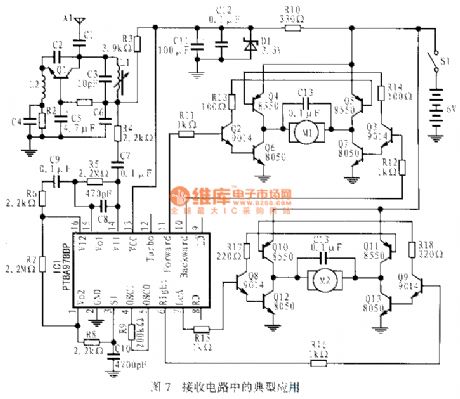

The application circuit of 5-function remote control PT8A977/978

Published:2011/7/6 21:19:00 Author:qqtang | Keyword: application circuit, remote control | From:SeekIC

The remote toy car adopts the servo motor wireless remote control technology. The basic requirements of remote circuit design are good function, low cost, smooth operation, flexible control, simple wire, effective anti-disturbance, etc. Usually, the drive of the remote toy car needs 2 micro DC servo motors to complete the functions of heading forward, backing up, turning left, turning right and acceleration, etc. The toy car market is full of competition, so requirements on the electric function of them are higher and higher.
