The double purpose desk lamp circuit of dimming and timing

Published:2011/6/24 3:03:00 Author:Seven | Keyword: double purpose, desk lamp | From:SeekIC

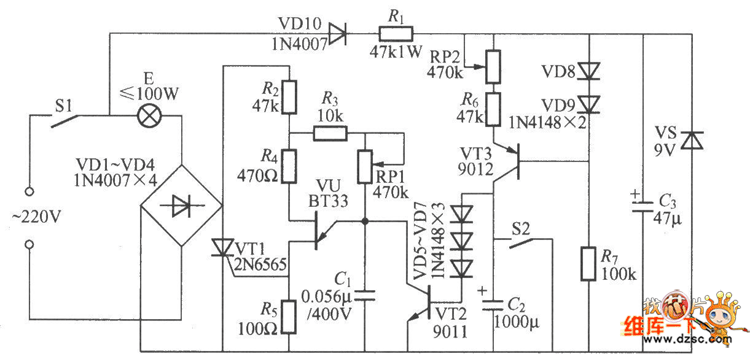

The figured lamp circuit can not only casually regulate the light, but also has the function of timing and putting out the light, which consists of the thyristor light regulating circuit and thyristor time delay circuit, two parts in total.
