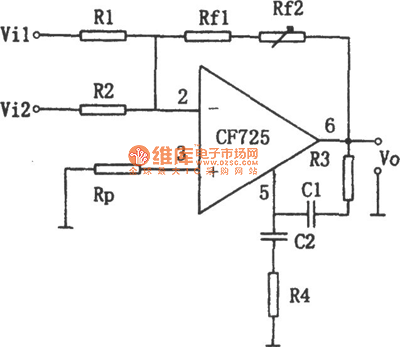

The gain adjustable addition circuit composed of CF725

Published:2011/8/16 22:26:00 Author:Rebekka | Keyword: gain adjustable addition | From:SeekIC

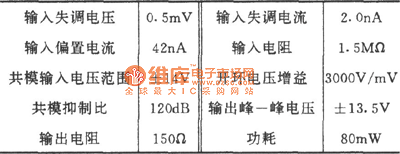

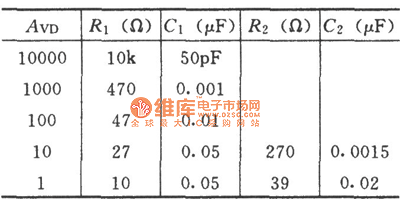

The circuit uses integrated operational amplifier CF725. The op amp is a monolithic precision operational amplifier with low power consumption, high voltage gain. It can be used for instrumentation etc. The component values of frequency compensation network. The typical main parameters of CF725.
