The protection circuit diagram adopted transistor triode

Published:2011/6/24 4:08:00 Author:Nicole | Keyword: protection, transistor, triode | From:SeekIC

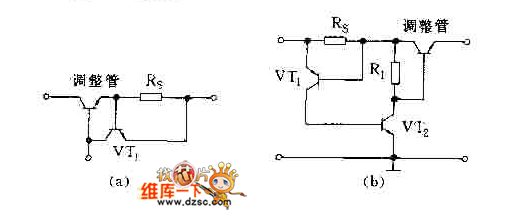

The protection circuit which adopts transistor triode, the regulator's amperage is limited by using the triode's emitter junction slot, the protection circuit's position can be setin the front or back of adjustment, it depends on the used PNP type or NPN type, in the figure, the protection circuit is made of VT1 and RS.
