Thin wire used to light control circuit

Published:2011/4/13 4:19:00 Author:Nicole | Keyword: thin wire, light control | From:SeekIC

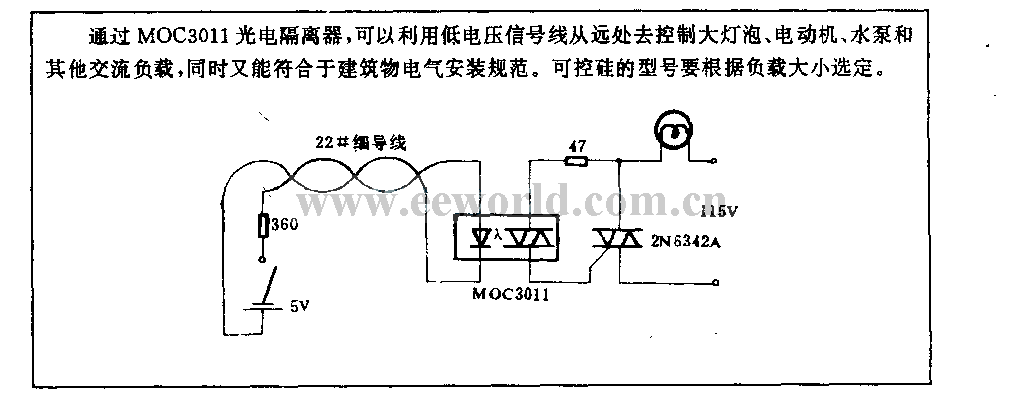

MOC3011 photoelectric isolator can use low voltage singal line to control large bulb, motor, pump and other AC load form distance, it also conforms to building electric installation standard. The choice of thyristor type is decided by the load.
