Thirty bits falling water lamp digital control circuit

Published:2011/11/30 20:39:00 Author:May | Keyword: Thirty bits, falling water lamp, digital control | From:SeekIC

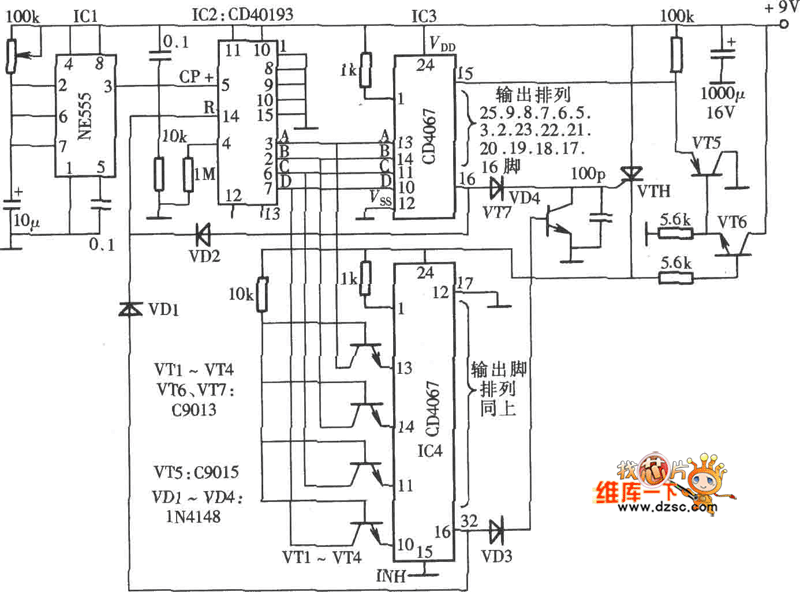

The color lamps controllingcircuit shown in the chart hasthirty outputs, whichcan control thirty lamps todo falling water sports by the external driver circuit, and it can beused as large size decoration variegated lamp controller, and the circuit is shown in the diagram. The diagram consists of control impulse generator, control impulse distributor and variegated lamp control output circuit.
